Q.

An L-shaped object, made of thin rods of uniform mass density, is suspended with a string as shown in figure. If AB = BC, and the angle made by AB with downward vertical is $θ$ , then :

A
$tan θ = \frac{2}{3}$
B
$tan θ = \frac{1}{3}$
C
$tan θ = \frac{1}{2}$
D
$tan θ = \frac{1}{2 3}$

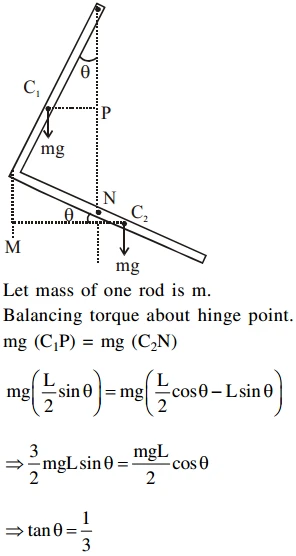

Solution
