JEE Main2019Physics
Q.

The pitch and the number of divisions, on the circular scale, for a given screw gauge are 0.5 mm and 100 respectively. When the screw gauge is fully tightened without any object, the zero of its circular scale lies 3 divisions below the mean line. The readings of the main scale and the circular scale, for a thin sheet, are 5.5 mm and 48 respectively, the thickness of this sheet is:

  1. A

    5.725 mm

  2. B

    5.740 mm

  3. C

    5.755 mm

  4. D

    5.950 mm

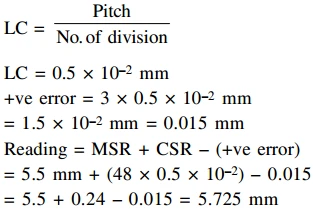

Solution
