JEE Main2019Physics
Q.

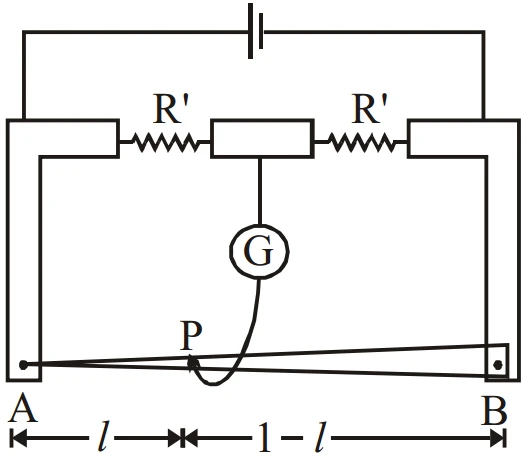

In a meter bridge, the wire of length 1 m has a nonuniform cross-section such that, the variation of its resistance R with length is . Two equal resistances are connected as shown in the figure. The galvanometer has zero deflection when the jockey is at point P. What is the length AP ?

  1. A

    0.2 m

  2. B

    0.35 m

  3. C

    0.25 m

  4. D

    0.3 m

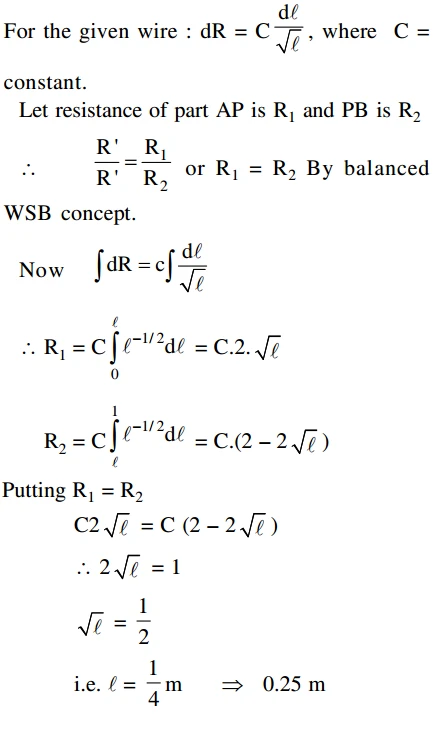

Solution
