JEE Main2019Physics
Q.

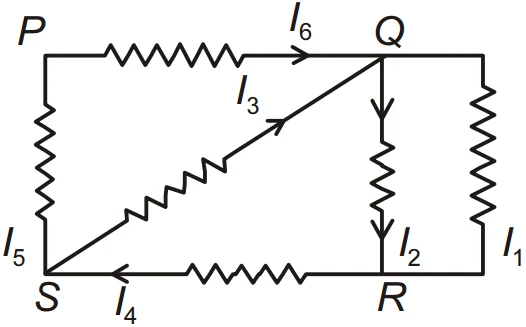

In the given circuit diagram, the currents, I1 = – 0.3 A, I4 = 0.8 A and I5 = 0.4 A, are flowing as shown. The currents I2 , I3 and I6 , respectively, are:

  1. A

    1.1 A, 0.4 A, 0.4 A

  2. B

    1.1 A, – 0.4 A, 0.4 A

  3. C

    0.4 A, 1.1 A, 0.4 A

  4. D

    –0.4 A, 0.4 A, 1.1 A

Solution
