JEE Main2019Physics
Q.

An electron, moving along the x-axis with an initial energy of 100 eV, enters a region of magnetic field   at S (See figure). The field extends between x = 0 and x = 2 cm. The electron is detected at the point Q on a screen placed 8 cm away from the point S. The distance d between P and Q (on the screen) is

(electron’s charge = 1.6 × 10–19 C, mass of electron = 9.1 × 10–31 kg)

  1. A

    11.65 cm

  2. B

    12.87 cm

  3. C

    2.25 cm

  4. D

    1.22 cm

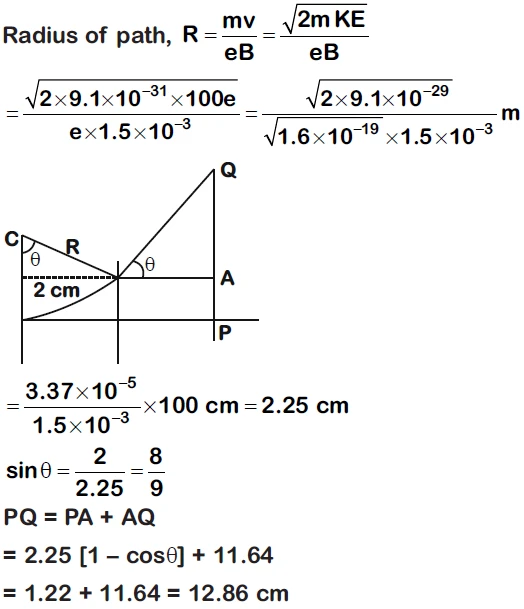

Solution
