Q.

Figure shows a DC voltage regulator circuit, with a Zener diode of breakdown voltage = 6 V. If the unregulated input voltage varies between 10 V to 16 V, then what is the maximum Zener current?

  1. A

    7.5 mA

  2. B

    1.5 mA

  3. C

    2.5 mA

  4. D

    3.5 mA

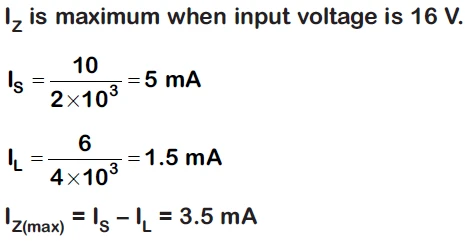

Solution
