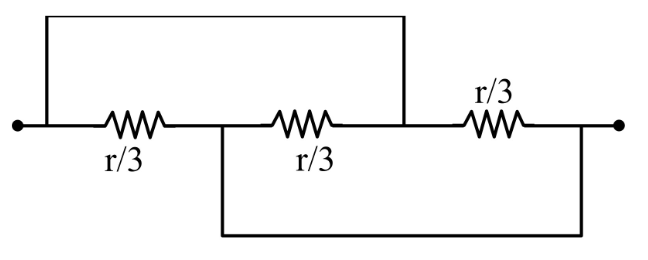

Find the equivalent resistance between two ends of the following circuit.

Solution

The connecting wires collapse the network so that all three $r /3$ resistors share the same pair of nodes — they are all in parallel between A and B.

Three equal resistors of $r /3$ in parallel give an equivalent resistance:

$R_{eq} = \frac{r /3}{3} = \frac{r}{9}$ .
