JEE Main 2026 Jan 21 Shift 1, Physics Q21: Magnification

JEE Main2026Jan 21, Shift 1Physics

A collimated beam of light of diameter 2 mm is propagating along x-axis. The beam is required to be expanded in a collimated beam of diameter 14 mm using a system of two convex lenses. If first lens has focal length 40 mm, then the focal length of second lens is ______________ mm.

Your answer

Solution

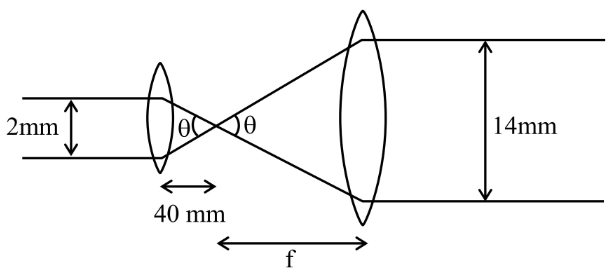

A Keplerian beam expander uses two converging lenses sharing a common focal point. The angular magnification (and the beam-diameter ratio for collimated beams) equals $f_{2} / f_{1}$ .

$\frac{f _{2}}{f _{1}} = \frac{d _{o u t}}{d _{in}} = \frac{14}{2} = 7 \Rightarrow f_{2} = 7 \times 40 = 280$ mm.
