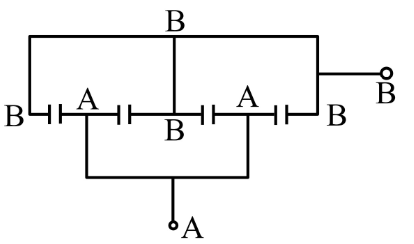

Four capacitor each of capacitance $16 μ$ F are connected as shown in the figure. The capacitance between points A and B is : _____ (in $μ$ F).

Your answer

Solution

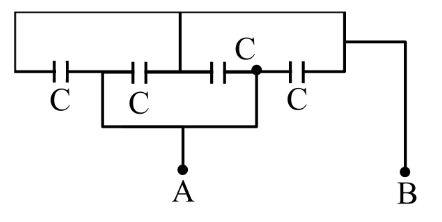

Redrawing the network (tracing nodes carefully) shows all four capacitors connected directly between A and B $\Rightarrow$ they are in parallel.

$C_{eq} = 4 C = 4 \times 16 = 64 μ$ F.
