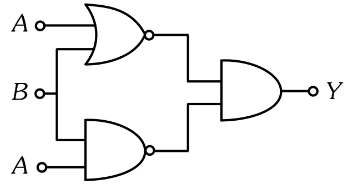

The output (Y) of the given logic implementation is similar to the output of an/a ________ gate.

  1. A

    AND

  2. B

    NAND

  3. C

    OR

  4. D

    NOR

Solution

Given:

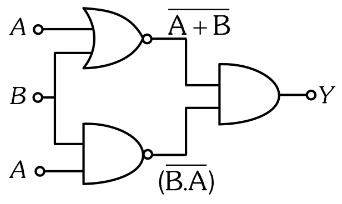

Top gate (NOR):

Bottom gate (NAND):

Final output:

Substituting the values of and :

Using De Morgan's Theorem:

Therefore,

Applying the absorption law:

Hence,

or equivalently,

NOR Gate
