Q.

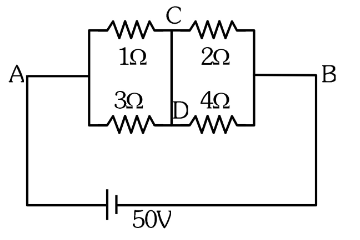

A constant voltage of V is maintained between the points A and B of the circuit shown in the figure. The current through the branch CD of the circuit is:

  1. A

    1.5 A

  2. B

    2.0 A

  3. C

    2.5 A

  4. D

    3.0 A

Solution

Apply Kirchhoff's laws. With 50 V across A–B, the top branch (1Ω + 2Ω = 3Ω) carries 50/3 A but the network is more involved due to the cross-link CD.

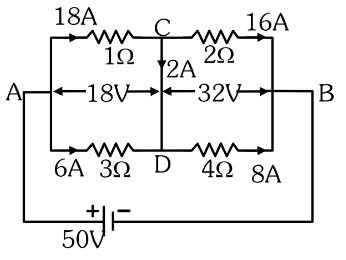

Solving with KCL/KVL: current in upper segment A→C = 18 A, C→B = 16 A, lower A→D = 6 A, D→B = 8 A. The difference at node C (or D) must flow through CD: A.

A.
