JEE Main 2025 Jan 23 Shift 1, Physics Q7: Charge & discharge of a condenser

JEE Main2025Jan 23, Shift 1Physics
Q.

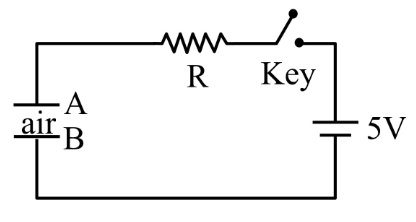

Identify the valid statements relevant to the given circuit at the instant when the key is closed.

A. There will be no current through resistor R.

B. There will be maximum current in the connecting wires.

C. Potential difference between the capacitor plates A and B is minimum.

D. Charge on the capacitor plates is minimum.

Choose the correct answer from the options given below :

  1. A

    C, D only

  2. B

    B, C, D only

  3. C

    A, C only

  4. D

    A, B, D only

Solution

At the instant the switch closes, the capacitor is uncharged. An uncharged capacitor behaves like a short circuit (zero potential drop across it).

So the resistor sees the full battery emf, the current is at its maximum value, the charge is at its minimum, and the potential difference across the plates is at its minimum.

This makes B, C, D true and A false.
