JEE Main 2026 Apr 2 Shift 2, Physics Q5: Logic Gates

JEE Main2026Apr 2, Shift 2Physics
Q.

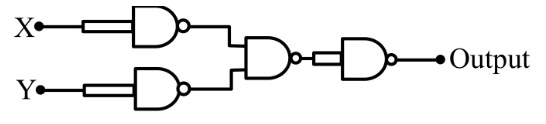

If and are the inputs, the given circuit works as_____.

  1. A

    OR gate

  2. B

    AND gate

  3. C

    NAND gate

  4. D

    NOR gate

Solution

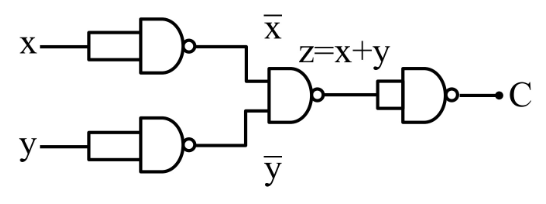

Final output , which is the NOR operation.

The circuit behaves as a NOR gate.

Concept behind this question

Logic GatesNotes, formulas and examples →
