JEE Main2026Apr 5, Shift 1Physics
Q.

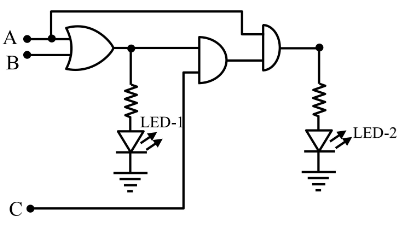

For the given logic circuit, which of the following inputs combination will make both LED-1 and LED-2 to glow ?

  1. A

    A = 0, B = 1, C = 1

  2. B

    A = 1, B = 0, C = 0

  3. C

    A = 1, B = 0, C = 1

  4. D

    A = 1, B = 1, C = 0

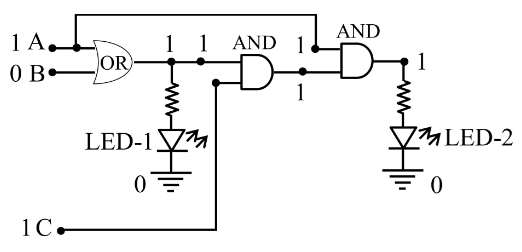

Solution
