Q.

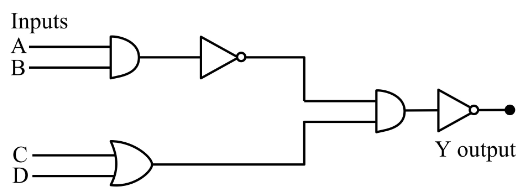

The correct truth table for the given input data of the following logic gate is :

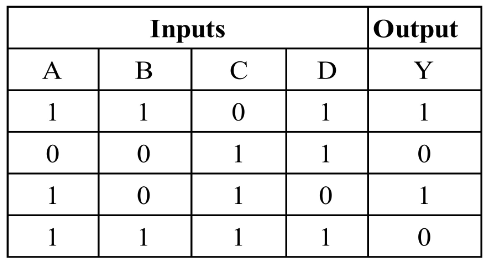

  1. A

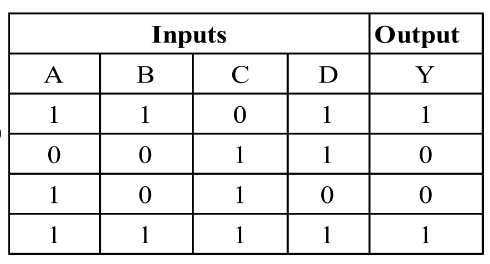

  2. B

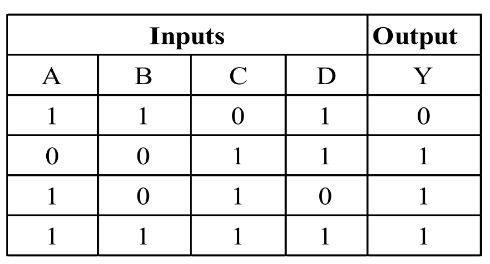

  3. C

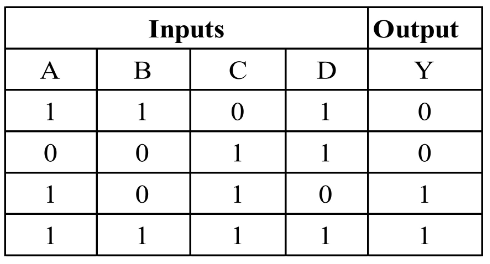

  4. D
Solution

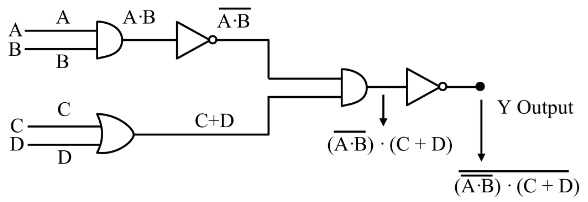

Tracing the circuit: .

By De Morgan, .

Equivalently, when either , or both and .

Row-by-row evaluation:

(1,1,0,1): , so .

(0,0,1,1): , , so .

(1,0,1,0): , , so .

(1,1,1,1): , so .

Outputs: 1, 0, 0, 1 — matches option (2).
