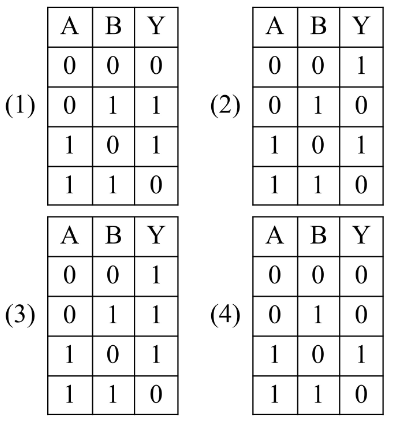

Identify the correct truth table of the given logical circuit.

  1. A

    1

  2. B

    2

  3. C

    3

  4. D

    4

Solution

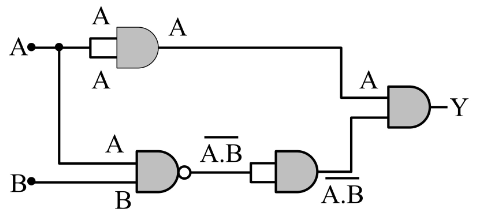

The output of the first AND gate (with A on both inputs) is simply . The NAND gate output is . The final AND gate gives:

.

Truth table for :

ABY
000
010
101
110

This matches option (4).
