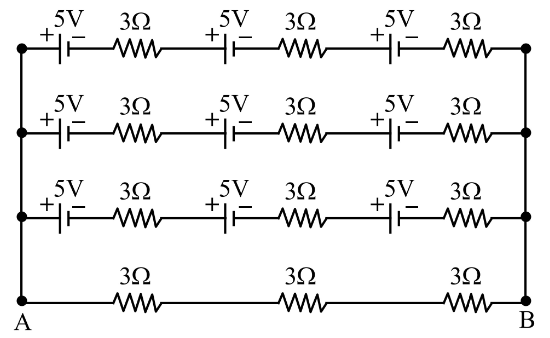

Refer to the figure given below, current between terminals A and B is _________ A.

  1. A

    12.5

  2. B

    1.25

  3. C

    7.5

  4. D

    5

Solution

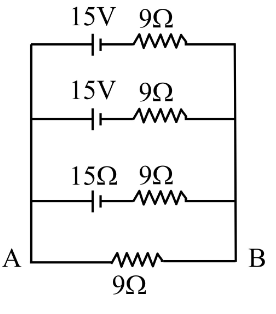

Each of the three upper rows reduces to a single branch with EMF V and internal resistance . The bottom row with no cell is a resistor.

The three EMF branches in parallel give an equivalent EMF of V (all identical) and equivalent internal resistance .

This combination is connected through the external branch between A and B. Total resistance in the loop: .

Current from A to B: A.
