NEET 2023 — Chemistry solution

NEET2023Chemistry

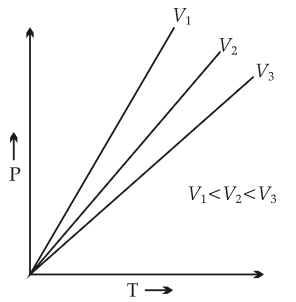

Which amongst the following options is correct graphical representation of Boyle's Law?

Solution

Boyle's law holds at constant temperature: $P V = n R T \Rightarrow P = (n R T) \cdot \frac{1}{V}$ .

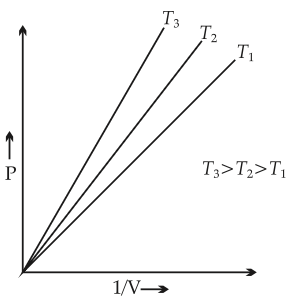

So a plot of $P$ vs $\frac{1}{V}$ at fixed $T$ is a straight line through the origin with slope $n R T$ . Higher temperature gives a steeper slope, so the three isotherms appear as straight lines with $T_{3} > T_{2} > T_{1}$ .
